CEX WDM1R multilexerGPON XGS-PON FWDM module optical filter

Gezhi Photonics (Shenzhen) Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CEX WDM1R multilexerGPON XGS-PON FWDM module optical filter

  • 1
  • 2
  • 3

Brand Name : GEZHI or OEM

Model Number : CEX02A0XX

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Wavelength : GPON, XGS-PON

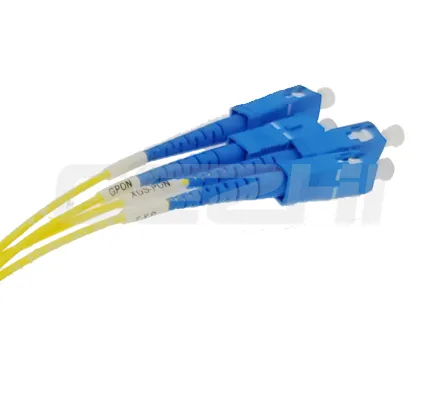

Fiber Connector : LC/UPC, SC/APC etc.

Channel Number : 4, 8, 16, 18 or Customized

Fiber type : SMF-28e

Center Wavelength : 1270/1577; 1310/1490

Application : Data Center

Contact Now

Description of WDM1R GPON / XGPON Filter WDM Multiplexer

CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter

GPON XGS-PON WDM Module

Our CEX WDM series is designed for next generation passive optical networks (NGPON), a new optical access system that coexists with GPON on the same ODN. These WDM devices, including GPON, XGS-PON, RF video, and OTDR combiners, are designed to accommodate NGPON1 and NGPON2 TWDM wavelengths to maximize the density and enhance the speed of optical distribution network.

Features of WDM1R GPON / XGPON Filter WDM Multiplexer

Custmized Wavelength & Channel:

GPON : 1290-1330 & 1480-1500nm

XGS-PON : 1260-1280 &1575-1580

OTDR : 1625-1650nm
RF Video : 1550-1560nm
NG-PON2 : 1524-1544 & 1596-1603nm

Various Package Type:

ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

CEX WDM1R multilexerGPON XGS-PON FWDM module optical filter

CEX WDM1R multilexerGPON XGS-PON FWDM module optical filter

CEX WDM1R multilexerGPON XGS-PON FWDM module optical filter

Specifications of WDM1R GPON / XGPON Filter WDM Multiplexer

Parameter
Unit
CEX WDM Module
Pass channel wavelength - GPON
nm
1290~1330 & 1480~1500
Pass channel wavelength - XGS-PON
nm
1260~1280 & 1575~1580
Insertion Loss (dB) COM @GPON
dB
<0.8 dB
Insertion Loss (dB) COM @XGS-GPON
dB
<1.2 dB
Isolation - COM - XGS-PON @GPON
dB
>30
Isolation - COM - GPON @XGS-PON
dB
>30
Isolation @Express Port
dB
>15
Polarization Dependent Loss
dB
<0.2
Polarization Mode Dispersion
dB
<0.1
Directivity
dB
>50
Return Loss
dB
UPC >45 APC>50
Power Handling
mW
<500 (High Power type available)
Fiber Type
/
SMF-28e (Polarization Maintaining Type available)
Operating Temperature
-20~+75 (-40~+85 available)
Storage Temperature
-40~+85

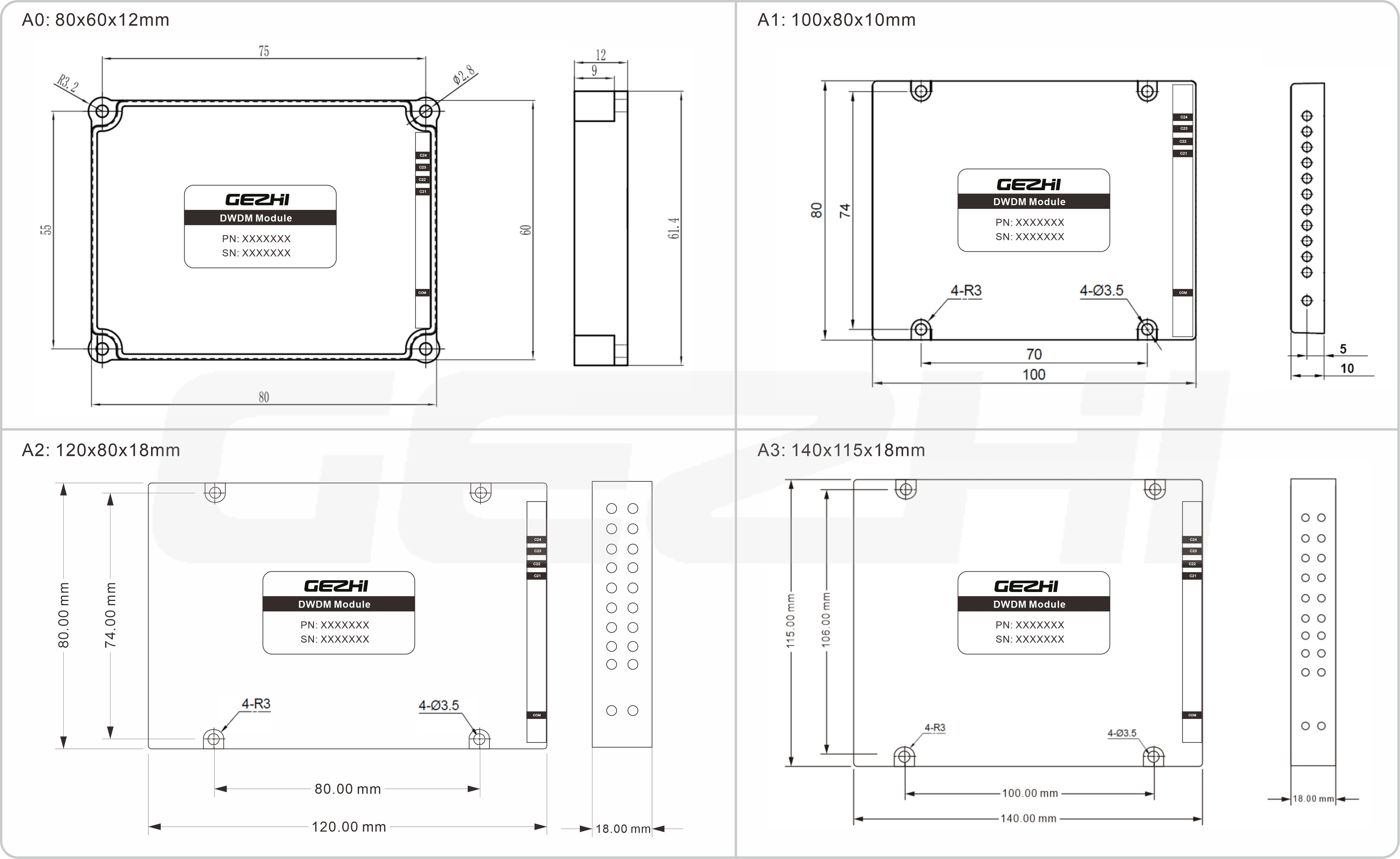

Package Type
mm
ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

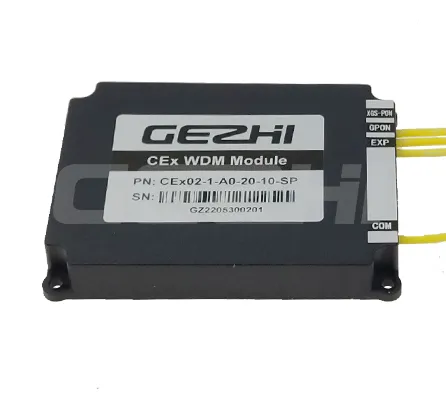

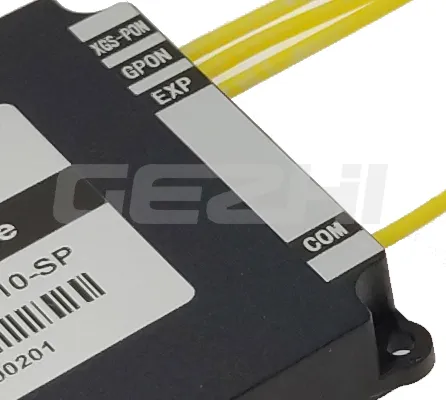

CEx Multiplexer Module ABS Box Package

CEX WDM1R multilexerGPON XGS-PON FWDM module optical filter

FAQ

FAQ
Q: Are you trading company or manufacturer?

A: We are original manufacturer of
WDM1R GPON / XGPON Filter WDM Multiplexer
. We can do OEM/ODM business.
Q: How long is your delivery time?
A: General delivery time: 5~14 days.
Q: What is your terms of payment?
A: 100% T/T inadvance.
Q: What is the warranty ?
A: 3years warrangty time.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;


Any questions,please feel free to contact us,we will provide quality services for you.
