1x2 PLC SC/APC Fiber Optic Splitter product description

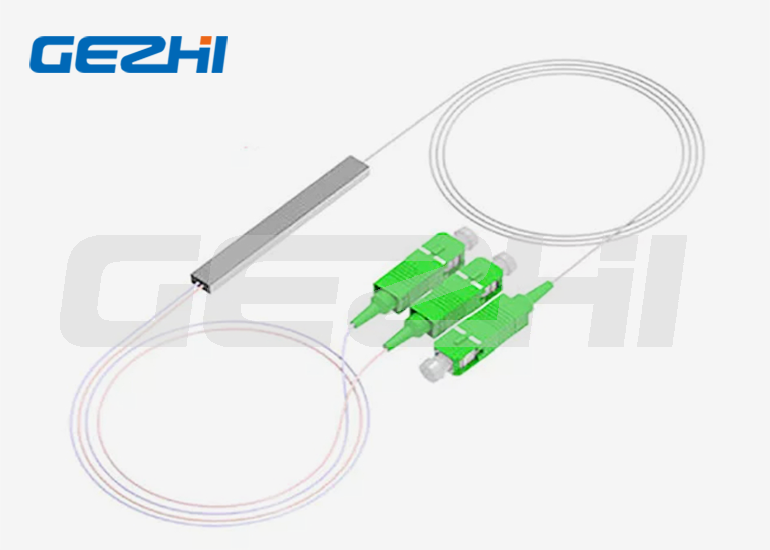

1x2 PLC SC/APC Fiber Optic Splitter FTTH SM 0.9mm G657A1 1m optical fiber plc splitter
The 1x2 fiber optic splitter is a device used for fiber optic communications. It is mainly used in fiber to the home (FTTH) systems and can split an input fiber optic signal into two output signals. This type of splitter is commonly used in home or small business networks to distribute and transmit signals.
Technical parameters and characteristics of fiber optic splitters
Fiber type: G657A1 single-mode fiber.
Fiber Diameter: 0.9mm.
Operating wavelength: 1260-1650 nanometers.
Insertion Loss: Less than 4 decibels (dB).
Return Loss: 55/50 dB.
Connector type: SC/UPC, SC/APC or no connector.
Fiber length: 1 meter or 1.5 meters.
Certification: CE, RoHS, ISO9001.
Features
1.High Reliability, Excellent Mechanical, Small Size.
2.Low insertion Loss and low Polarization Dependent loss.
3.High channel counts.
4.Excellent Environmental Stability and Widely Used.
Applications
1. FTTx Deployments(GPON/BPON/EPON).
2. Cable television (CATV).
3. Local area networks (LAN).
4. Test equipment.
5. Passive optical networks(PON).
Specification
| |
| 1 1xN (with connector) |
| (Number of Channels) | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| (Operating Wavelenth) | 1260 to 1650 | |
| P Level Insertion Loss | 3.8 | 7.1 | 10.5 | 13.5 | 16.5 | 20.5 | 4.4 | 7.6 | 10.8 | 14.1 | 17.4 | 20.7 |
| S Level Insertion Loss | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21 | 4.6 | 7.9 | 11.2 | 15 | 18.1 | 21.7 |
| (Uniformity) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 |
| (PDL) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| (Return Loss) | more than 55 |
| (Directivity) | more than 55 |
| (Type of fiber) | ITU G657A |
| (Operating temperature) | -40 to 85 |
| (Pigtail length) | 1m (1.5m optional or customized) |
FAQ
Q1:Can I have a sample order? What is your MOQ? A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
